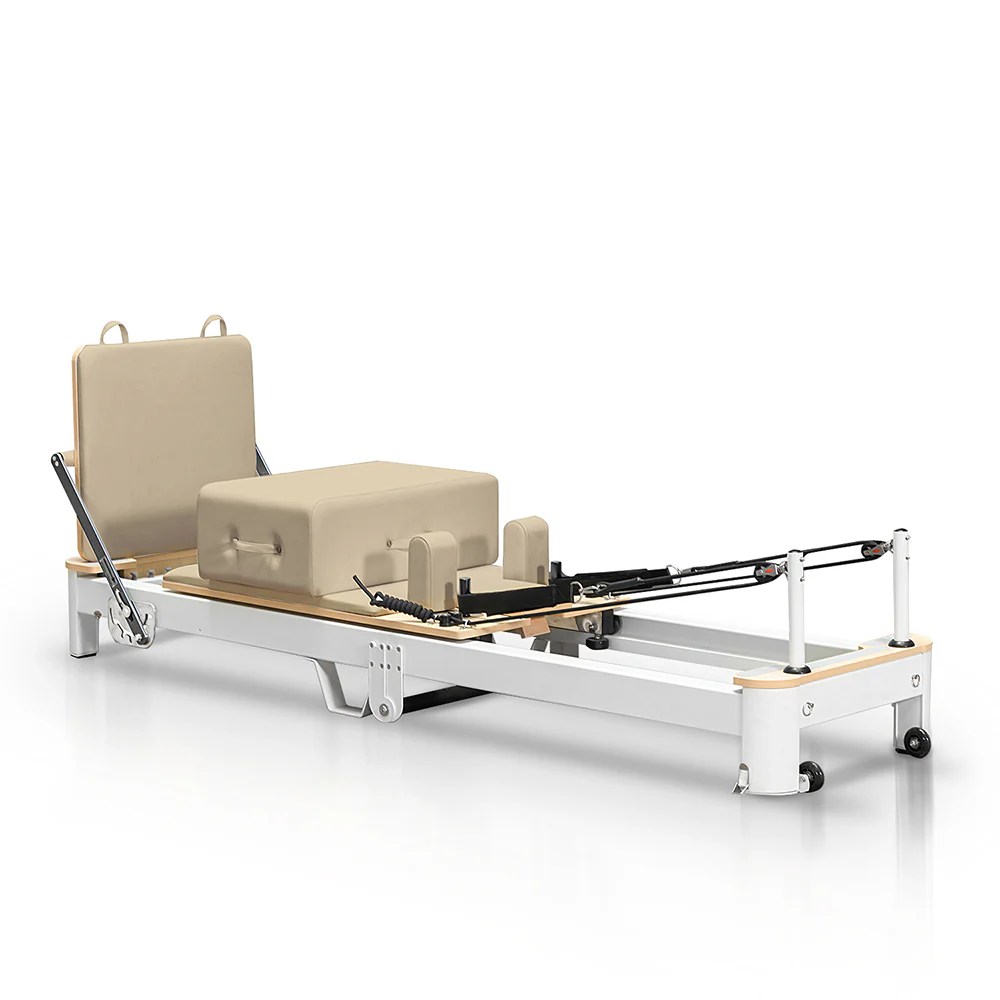

Assembly Instructions for Non-Folding Pilates Reformer

Applicable to the equipment shown in the images

Preparation Before Assembly

1. Checklist

Ensure all parts are complete and undamaged, including:

  • Main frame
  • Sliding carriage (with shoulder rests)
  • Foot bar
  • Jump board (if included)
  • Rope and pulley system
  • Spring system
  • Rectangular cushions and other accessories
  • Assembly tools: Allen wrench, screws, nuts, etc.
2. Prepare the Assembly Space

Choose a flat, spacious area for assembly, ensuring the equipment and floor won’t be scratched.

Assembly Steps

1. Install the Main Frame
  • Place the main frame in the designated location, ensuring all four corners are stable.
  • If the main frame has adjustable feet, adjust them to make the frame level and steady.
2. Install the Sliding Carriage
  • Place the sliding carriage onto the rails and align it with the pulley system.
  • Ensure the wheels fit securely into the rails and that the sliding motion is smooth and unobstructed.
3. Attach the Foot Bar
  • Insert the foot bar into the designated slots at the front of the frame.
  • Use screws and an Allen wrench to secure the foot bar in place.
  • Adjust the height and angle to ensure it’s convenient for use.
4. Install the Spring System
  • Connect one end of the springs to the sliding carriage and the other end to the fixed points on the frame, following the color or number markings.
  • Ensure all springs are securely attached to avoid loosening or detachment.
5. Install the Rope and Pulley System
  • Attach the ropes to the hooks on either side of the sliding carriage, threading them through the pulleys on the top or sides of the frame.
  • Adjust the rope length to ensure it’s balanced and suitable for various exercises.
6. Attach the Jump Board (if included)
  • Insert the jump board into the designated slots at the front of the frame.
  • Use screws to secure the jump board firmly in place.
  • Check the angle and stability of the jump board.
7. Install Additional Accessories
  • Attach rectangular cushions, boxes, and foot straps to the sliding carriage or near the foot bar as needed.

Final Checks

  1. Ensure all screws are tightened, and all parts are securely attached.
  2. Test the sliding motion of the carriage and the resistance of the springs.
  3. Verify that the rope and pulley system operates smoothly.
  4. Adjust the angle of the jump board or foot bar to suit different users’ needs.

Maintenance and Precautions

  1. Regularly check the connections of the springs and ropes to avoid loosening.
  2. Use a soft cloth for cleaning and avoid corrosive cleaning agents.
  3. Ensure the equipment is always level to prolong its lifespan.

By following these steps, you can safely and effectively assemble your non-folding Pilates Reformer and enjoy an efficient and comfortable workout experience!

Assembly Instructions for Folding Pilates Reformer

Applicable to the equipment shown in the images

Preparation Before Assembly

1. Checklist

Ensure all parts are complete and undamaged, including:

  • Main frame
  • Sliding carriage (with shoulder rests)
  • Foot bar
  • Jump board (if included)
  • Rope and pulley system
  • Spring system
  • Rectangular cushions and other accessories
  • Assembly tools: Allen wrench, screws, nuts, etc.
2. Prepare the Assembly Space

Choose a flat, spacious area for assembly, ensure that the floor is clear and that the equipment will not be scratched during assembly.



Assembly Steps

1. Unfold the Main Frame
    • Carefully place the folded frame on the floor.
    • Unlock the safety latches on both sides of the frame.
    • Slowly unfold the frame until it is fully extended and locks securely in place.
    • Ensure the locking mechanisms are engaged, and the frame is stable.
2. Install the Sliding Carriage
  • Place the sliding carriage onto the rails, aligning it with the frame.
  • Ensure the carriage wheels fit securely into the rails and that the sliding motion is smooth and unobstructed.
3. Attach the Foot Bar
  • Insert the foot bar into the designated slots at the front of the frame.
  • Use screws and an Allen wrench to secure the foot bar.
  • Adjust the height and angle for comfortable use.
4. Install the Spring System
  • Attach one end of the springs to the sliding carriage and the other end to the fixed points on the frame.
  • Match the color or number markings of the springs to the attachment points as per the manual.
  • Ensure the springs are securely attached to prevent accidental detachment.
5. Install the Rope and Pulley System
  • Attach the ropes to the hooks on either side of the sliding carriage.
  • Thread the ropes through the pulleys mounted on the frame.
  • Adjust the rope length for balance and functionality during exercises.
6. Attach the Jump Board (if included)
  • Insert the jump board into the designated slots at the front of the frame.
  • Use screws to secure the jump board in place.
  • Confirm the jump board is stable and properly angled.
7. Secure Folding Mechanisms
  • Check all folding joints and locks to ensure they are securely tightened.
  • Confirm the frame remains stable during usage.
8. Install Additional Accessories
  • Attach cushions, boxes, and foot straps to the sliding carriage or foot bar area as required.

Final Checks

  1. Ensure all screws and locking mechanisms are tightened.
  2. Test the sliding motion of the carriage and the tension of the springs.
  3. Verify the rope and pulley system operates smoothly and evenly.
  4. Confirm the frame folds and unfolds easily for storage.

Maintenance and Precautions

  • Regularly inspect the folding joints, springs, and ropes for signs of wear or loosening.
  • Clean the equipment with a soft cloth and avoid harsh cleaning agents.
  • Always lock the frame securely after unfolding and ensure it is level before use.
  • When folding for storage, ensure all accessories are removed to prevent damage.

By following these instructions, you can successfully assemble your folding Pilates Reformer and enjoy its convenience, portability, and functionality!

Assembly Instructions for the Ladder Barrel

Applicable to the equipment shown in the images

Preparation Before Assembly

1.Confirm Package Contents

Ensure the package includes all necessary parts and tools:

  1. Barrel Frame (curved padded section with wooden base)
  2. Ladder Section (wooden ladder structure)
  3. Adjustable Base Panel (connection between the ladder and the barrel)
  4. Screws and Fasteners
  5. Allen Wrench and Additional Tools (if provided)
2. Prepare the Workspace
  • Choose a flat and stable area for assembly.
  • Lay out all components and tools to ensure ease of access.

Assembly Steps

Step 1: Attach the Barrel Frame
  1. Place the Barrel Frame on its base in an upright position.
  2. Align the pre-drilled holes on the barrel with the slots on the Adjustable Base Panel.
  3. Secure the barrel to the panel using screws and tighten with the Allen wrench.
Step 2: Assemble the Ladder Section
  1. Position the Ladder Section vertically next to the barrel.
  2. Align the ladder’s base with the Adjustable Base Panel.
  3. Secure the ladder to the panel using screws and fasteners. Ensure the ladder is stable and upright.
Step 3: Adjust the Distance
  1. Slide the Adjustable Base Panel to align the barrel and ladder at the desired distance for exercises.
  2. Use the locking mechanisms (pins or screws) to secure the position. Make sure the adjustment is firm to prevent movement during use.
Step 4: Final Fixation
  1. Tighten all screws and connections, ensuring there is no wobbling or looseness.
  2. Check that the barrel and ladder are securely fixed to the base panel.

Post-Assembly Checklist

  1. Test the stability of the assembled Ladder Barrel by applying light pressure to the ladder and barrel sections.
  2. Confirm the barrel padding is properly secured and comfortable for use.
  3. Ensure the adjustable base mechanism operates smoothly and locks firmly.

Maintenance Tips

  • Periodically check and tighten screws to maintain stability.
  • Clean the padded surface with a soft cloth and mild cleaner to preserve its condition.
  • Avoid placing the equipment in humid or direct sunlight conditions to protect the wood.

By following these steps, your Ladder Barrel will be securely assembled and ready for use!

Assembly Instructions for the Wunda Chair

Preparation Before Assembly

1. Confirm Package Contents

Before starting, ensure all parts and tools are included:

  1. Wunda Chair Frame (main structure)
  2. Pedals (single or split depending on the model)
  3. Springs (for resistance adjustment)
  4. Handles or Handrails (if applicable)
  5. Fasteners and Screws
  6. Tools (Allen wrench, spanner, or other tools provided in the package)

2. Prepare the Workspace

  • Choose a flat, stable area for assembly.
  • Lay out all parts and tools for easy access.

Assembly Steps

Step 1: Set Up the Main Frame
  1. Place the Chair Frame upright on a flat surface.
  2. Ensure the frame is stable before proceeding.
Step 2: Attach the Pedals
  1. Locate the pedal attachment points on the base of the chair.
  2. Align the Pedals with the designated slots or hinges on the frame.
  3. Secure the pedals using the provided screws or bolts. Tighten with the Allen wrench to ensure stability.
Step 3: Install the Springs
  1. Attach the Springs to the hooks or notches on the pedal base and the chair frame.
    • Adjust the spring tension by choosing different hook positions based on your preference.
  2. Ensure the springs are securely fastened and have proper tension for smooth operation.
Step 4: Add the Handles or Handrails (if applicable)
  1. Insert the Handles or Handrails into the designated slots on the chair frame.
  2. Secure them using screws or locking pins. Tighten firmly to prevent movement.
Step 5: Final Fixation
  1. Double-check all screws, bolts, and connections to ensure everything is tightly secured.
  2. Test the pedals by pressing them down gently to confirm smooth movement and proper resistance.

Post-Assembly Checklist

  1. Confirm the chair is stable and does not wobble.
  2. Test the springs and pedals to ensure they move smoothly and provide the desired resistance.
  3. Ensure the handles or handrails are firmly fixed and at the correct height.

Maintenance Tips

  • Regularly check and tighten screws and springs to maintain stability and performance.
  • Clean the padded surfaces with a soft cloth and mild cleaner to keep them in good condition.
  • Avoid placing the chair in humid or direct sunlight conditions to protect the materials.

By following these steps, your Wunda Chair will be ready for use in no time!

Assembly Instructions for Cadillac Reformer Bed

Preparation Before Assembly

1. Confirm Package Contents

Before you begin, ensure all parts and tools are included in the package:

  1. Main Reformer Frame
  2. Cadillac Frame Components (vertical and horizontal bars)
  3. Springs (for both Reformer and Cadillac functions)
  4. Push-through Bar
  5. Trapeze Bar
  6. Ropes, Loops, and Straps
  7. Fasteners and Screws
  8. Tools (Allen wrench, spanner, etc.)

2. Prepare the Workspace

  • Choose a flat, stable area with enough space for assembly.
  • Lay out all parts and tools for easy access.

Assembly Steps

Step 1: Assemble the Main Reformer Frame
  1. Place the Reformer Frame flat on the ground in the desired position.
  2. Attach the Carriage to the frame by aligning it with the tracks. Ensure the rollers are properly inserted into the guide rails.
  3. Secure the footbar and other reformer components like the shoulder rests and headrest using the provided fasteners.
Step 2: Assemble the Cadillac Frame
  1. Identify the Vertical Bars and attach them to the four corners of the Reformer frame. Secure them using the provided screws and Allen wrench.
  2. Install the Horizontal Bars (top frame) by connecting them to the vertical bars. Tighten all fasteners securely to ensure stability.
Step 3: Install the Push-through Bar
  1. Attach the Push-through Bar to the designated vertical bars.
  2. Use the provided locking pins to secure the bar in place.
  3. Adjust the height and tension as needed based on your preference.
Step 4: Attach the Trapeze Bar
  1. Install the Trapeze Bar on the top horizontal frame using the provided hooks or straps.
  2. Ensure the bar can swing freely and is securely fastened.
Step 5: Add Springs and Accessories
  1. Attach the Springs to the designated hooks or anchor points on the frame, push-through bar, and trapeze bar.
    • Adjust spring tension according to your desired resistance level.
  2. Secure the Ropes, Loops, and Straps to their respective locations (carriage, frame, or handles).
  3. Double-check that all springs and straps are properly fastened and have no damage or fraying.

Post-Assembly Checklist

  1. Stability Test: Ensure the Cadillac frame is securely attached to the reformer base and does not wobble.
  2. Smooth Movement: Test the carriage, push-through bar, and trapeze bar for smooth operation.
  3. Spring Tension: Check the spring tension and adjust if necessary.
  4. Safety Check: Verify that all screws, bolts, and fasteners are tightened securely.

Maintenance Tips

  1. Regularly inspect all fasteners and tighten as needed to maintain stability.
  2. Check for wear and tear on the springs, ropes, and straps, and replace them if damaged.
  3. Clean padded surfaces with a soft, damp cloth and avoid using harsh chemicals.
  4. Store the equipment in a dry, cool environment to prolong its lifespan.

By following these steps, your Cadillac Reformer Bed will be properly assembled and ready for use! Enjoy your workouts!

Shopping Cart
Scroll to Top
